Other Industrial Thermal Insulation Jacket

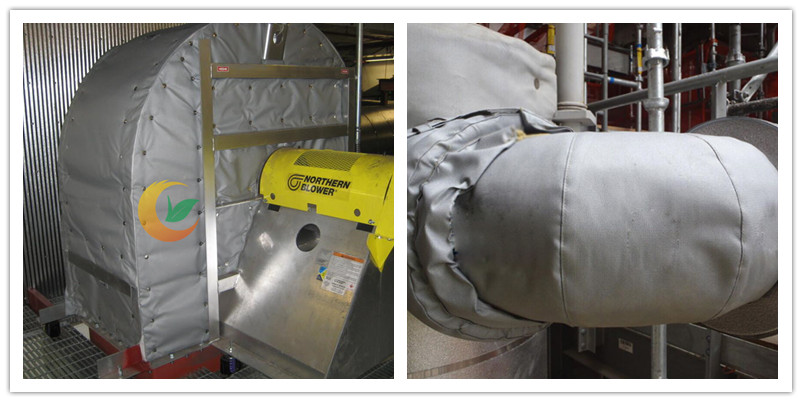

The Heat Insulation Jacket is custom designed to significantly reduce heat loss and surface temperature for valve, flange, pipe, injection & extrusion machine, dryer&fan, heat-exchange machine, exhaust system,curing press etc. Drum & tank heaters are used to heat all kinds of liquids such as water, chemical materials, honey, oil, glue etc. It can save energy by reducing heat loss. Except saving energy, it also can reduce room temperature to improve the surrounding work environment , protect operators.
Why Heat Insulation Jacket ?
>Keep heat/cold in and out, saving energy & costs, reduce heat loss by 20%-40%, increase energy efficiency
>Easy to remove and re-install, so can do equipment maintenance freely.
>Fire, freeze, high heat & personnel protection
>Surface temperature can be lowered to 40℃, is safe for touching by hands and operation
>No asbestos & pollution, waterproof, fireproof, oil resistant, anti-corrosion, easy to clean & bend, and nice looking
>Long life, more than 3 years.
>Custom designed and manufactured to fit the surface geometry of your applications.
Silicone Coated Fiberglass Fabric, PTFE Coated Fiberglass Fabric or other.
Glass fiber, Ceramic fiber or other.
Knitted Stainless Steel Wire Mesh, Alloy/ Aluminum Foil, Silicone Coated Fiberglass Fabric,PTFE Coated Fiberglass Fabric or other
Velcro, grommets, anchor pins, loops, zippers are all available in different styles and shapes, for easy installation and fitting tight purpose.
grey, silver or other color
0.025 W/M•K- 0.045 W/M•K±0.005
-198℃-1300℃. Different material can have different temperature resistance
Moisture absorption rate
Fire Rating/ Inflaming retarding
non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)
25-150mm (Normally 25-30mm)
Any industrial applications need to insulate heat
